Matching Plastic Extrusion Machines to Project Needs: A Practical Application Guide

JKS (Wuxi JKS Machinery Manufacturing Co. Ltd.), founded in 2013, is a Chinese manufacturer specialized in custom plastic extrusion machinery and complete turnkey production lines for pipes, profiles, sheets, and recycling. This guide helps procurement and project managers match the right extrusion equipment to their specific application scenario.

The Challenge: One Extruder Does Not Fit All

When starting a new plastic product line, the most critical decision is selecting the plastic extrusion machine that can handle your raw material, output requirements, and end-product quality. Using a general-purpose extruder for a specialized application often leads to poor plasticization, low efficiency, and high scrap rates. Instead, the equipment must be configured for the specific polymer, screw design, die geometry, and downstream auxiliaries.

Industry Context: From Flooring to Pipes

Plastic extrusion lines are used across building materials, interior decoration, water supply, drainage, and recycling industries. Each end product demands a different combination of extruder type (single screw vs. conical twin screw), screw diameter, L/D ratio, motor power, and supporting units such as calibration tanks, cooling troughs, haul-offs, and cutters. For example, SPC flooring requires a high-torque conical twin screw extruder with a four-roller calender, while HDPE water pipe production needs a single screw extruder with a large L/D ratio for thorough melting.

JKS Solutions: Custom Lines for Every Scenario

JKS offers a comprehensive range of extrusion lines, each designed for specific project requirements. The product portfolio covers plastic sheet/SPC flooring/WPC foam board extrusion lines, all kinds of plastic pipe production lines, PVC/WPC profile and solid plastic rod extruders, waste plastic recycling pelletizing machines, conical twin & single screw extruders, and a full range of auxiliary equipment including mixers, crushers, and pulverizers. Key models include:

• SPC Flooring Extrusion Line – Models SJSZ92/188 (110kW) to SJSZ110/220 (200kW). Output 15–40 tons/24h, width up to 1250 mm. Features EIR in-line synchronous wood grain embossing and vertical/inclined four-roller calender structures.
• PVC Water Supply & Drainage Pipe Line – PVC63 (Φ16–63 mm, 270 kg/h), PVC250 (Φ90–250 mm, 450 kg/h), PVC630 (Φ315–630 mm, 800 kg/h). Equipped with vacuum calibration, multi-claw traction, and dust-free cutting.

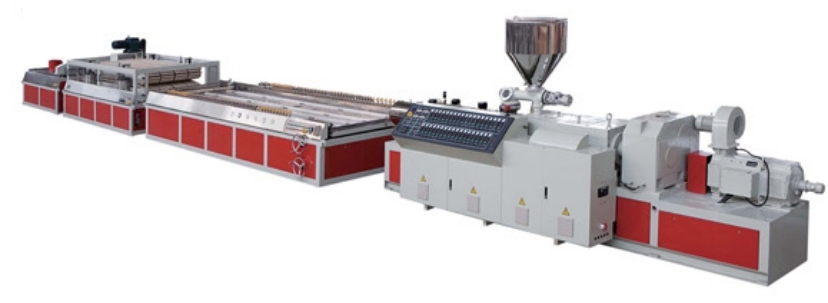

• WPC Door Panel Extrusion Line – SJSZ80 (75kW, 250–400 kg/h) and SJSZ92 (110kW, 400–600 kg/h). Produces hollow waterproof integral door slabs up to 1600 mm wide.
• PVC & WPC Foam Board Line – SJSZ80/156 (75kW) or co-extrusion 80+165 (75+37kW). Finished width 1220 mm, output 400–500 kg/h. Suitable for kitchen cabinet boards, furniture boards, and bathroom panels.

Step-by-Step: How to Select Your Line

1. Define the final product – material (PVC, PE, PP, WPC, etc.), profile shape, thickness, width, and quality requirements.
2. Determine output capacity – required daily or hourly production to size the extruder and downstream equipment.
3. Choose the extruder type – conical twin screw for PVC powder processing, single screw for PE/PP pellets, or specialized configurations for high-filled formulas.
4. Select auxiliary units – mixing/cooling unit, crusher/pulverizer for scrap recycling, calibration table, cooling tank, haul-off, cutter, and stacker.
5. Review customization options – screw configuration, voltage & frequency, control system (PLC), line layout, and automation level.
6. Plan for installation and training – JKS provides on-site commissioning, operator training, remote support, and a 12-month warranty.

Real Project References

JKS extrusion lines have been exported to over 35 countries. Selected cases demonstrate long-term reliability:

• Vietnam – PVC Hollow Wall Panel Line (client: plastic building materials manufacturer). One complete PVC hollow wall panel extrusion line in stable operation for more than 5 years. Delivered as a turnkey solution with on-site installation support and full export documentation.
• Malaysia – SPC Flooring Line (client: SPC flooring manufacturer). One complete SPC flooring extrusion line in stable operation for over 10 years. High-speed production, precise thickness control, on-site installation and training provided.
• Korea – SPC Flooring Line (client: plastic flooring manufacturer). One complete SPC flooring extrusion line in stable 24/7 operation for over 8 years. High output, consistent product quality, low maintenance, and reliable after-sales support.

Comparison of Key Extrusion Lines

Frequently Asked Questions

To evaluate whether a JKS plastic extrusion machine matches your project, request a project consultation or download the company brochure for detailed technical specifications.
