500-600kg/h Hollow WPC Door Panel Extrusion Line with SJSZ92/188 Twin Screw Extruder

Quantity:
SKU: 7188039054
Model: SJSZ92/188, SJSZ65/132

{{ variable.name }}

{{ value.name }}
Product Details

500-600kg/h Hollow WPC Door Panel Extrusion Line with SJSZ92/188 Twin Screw Extruder

Produce hollow waterproof integral WPC door slabs with high output

SEO Title: 500-600kg/h Hollow WPC Door Panel Extrusion Line SJSZ92/188 Twin Screw
Meta Description: SJSZ92/188 twin-screw extruder produces hollow WPC door panels at 500-600kg/h with 110kW motor. Waterproof integral slabs. CE certified, customizable. Contact JKS. URL Slug: 500-600kg-h-hollow-wpc-door-panel-extrusion-line-sjsz92-188

Product Summary

This extrusion line is designed for high-volume production of hollow waterproof integral WPC door panels. The SJSZ92/188 conical twin-screw extruder processes a blend of PVC resin, calcium powder, recycled material, wood powder, and auxiliary additives to output 500-600 kg/h. The finished panel width can reach up to 1200-1600 mm, making it ideal for interior door panels and bathroom doors.

Key Selling Points

  • High Output: 500-600 kg/h ensures efficient continuous production, reducing per-unit cost.
  • Waterproof Integral Panels: Produces hollow waterproof door slabs, ideal for bathroom and moisture-prone areas.
  • Wide Panel Width: Supports panels up to 1200-1600 mm wide, accommodating diverse door designs.
  • Durable Components: Screw & barrel made of 38CrMoAlA nitrided alloy steel for long service life.
  • CE Certified: Complies with EN ISO 12100, EN 1114-1, and other EU directives, ensuring safety and reliability.
  • Recyclable Material Support: Utilizes recycled material, promoting sustainable production.

Technical Specifications

ParameterValue
ModelSJSZ92/188
Main Motor Power110 kW
Extrusion Output500-600 kg/h
Finished Panel WidthMax 1200-1600 mm
Raw MaterialsPVC resin, calcium powder, recycled material, wood powder, auxiliary additives

Models and Options

Standard model is SJSZ92/188. Custom options include different mold designs to achieve specific door panel profiles and widths within the maximum range.

Materials and Structure

  • Screw & Barrel: 38CrMoAlA nitrided alloy steel for high wear resistance.
  • Extrusion Mold: Wear-resistant alloy die steel ensures consistent profile shapes.
  • Machine Frame: Q235 carbon steel provides rigid support for stable operation.

Applications

Specifically designed for interior door panels, bathroom waterproof doors, and other moisture-resistant door applications.

Customization

Wuxi JKS Machinery offers personalized design based on your raw materials and production needs, including free installation and technical training.

FAQ

What is the minimum order quantity?

MOQ is 1 unit.

What are the payment terms?

30% T/T deposit, 70% T/T balance before shipment.

Does the line come with CE certification?

Yes, the machine is CE certified under the Machinery, LVD & EMC Directives.

Can the line process recycled materials?

Yes, the raw material mix includes recycled material, supporting sustainable practices.

What is the maximum panel width it can produce?

The finished panel width can reach up to 1200-1600 mm.

Do you provide installation and training?

Yes, free factory installation and technical training are included.

Inquiry Information

Contact: Gordon
Email: gordon@jksjx.com
Phone: 86 18651004566
WhatsApp: 86 18601577228

jks-wpc-door-panel-full-production-flow-equipment

Full production flow of WPC door panel line

jks-wpc-hollow-door-panel-extrusion-line

Extrusion line for hollow door panels

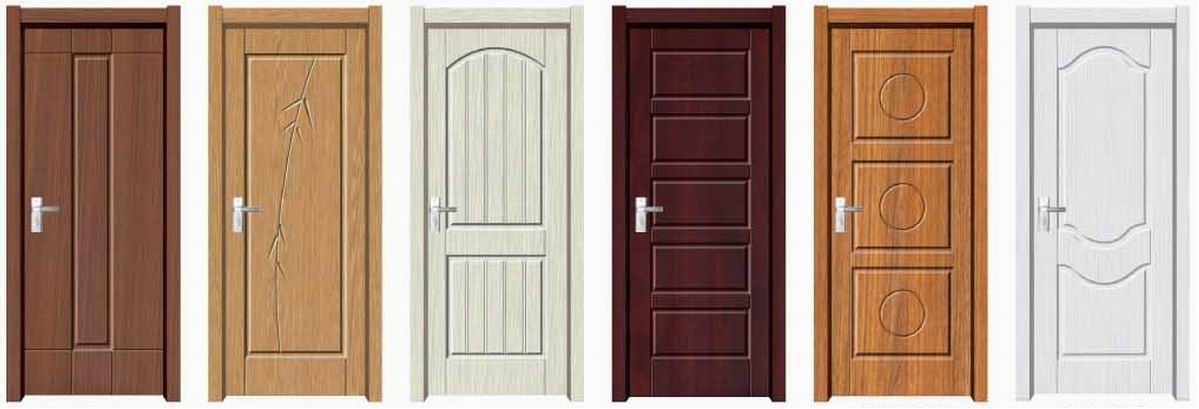

finished-wpc-hollow-door-panel

Finished hollow WPC door panel
